22 awg Wire Solid Core Hookup Wires-6 Different Colored Breadboard Wires 30ft or 9m Each, 22 Gauge Electronic Wire PVC (OD: 1.60mm) Arduino Wire
Special Price：
$ 1.46
： This item has been successfully added to the shopping cart.
Shopping cart has 0 item
Go To Cart Continue Shopping
Goods Info
Goods Detail
About this item
TUOFENG Solid Single Core Wire 1007 22 AWG Hook-Up Wire: Solid tinned copper conductor with a PVC sheath.
Solid Hookup Wire Good abrasion resistance and resistance to substances such as oil,solvents and chemicals: PVC Insulation that can withstand heats of up to 80 degrees C.
22awg Solid Wire Easy handling,stripping,and termination: Low-fray design.suitable for indoors/outdoors
Insulation: PVC .010".Voltage Rating: 300 Volts,Flame retardant: VW-1.
22awg Jumper Wire :6 different colored 30 Feet / 9 M spools :Red, black, green, yellow, blue, white,tinned copper wire
Product use:
Solid Wire Kit- Jumper Wire- Hook up Wire Kit
Due to the UL 1007 PVC insulation and Solid core, The wire is very flexible easy to strip and solders . Well suited for applications where the wire will be flexed, like test cables.Solid Core Hook-up Wires are perfect for wiring circuits on a breadboard or protoboard, where movement is minimal. Solid core wires are easier to push into a breadboard and plated through holes of a printed circuit board
Tinned copper wire - protecting them from corrosion and making it easier to solder.Highly efficient - Super low impedance
16AWG：Outside Diameter: 2.3mm Wire Core Diameter: 1.29mm,withstand current 15A
18AWG：Outside Diameter: 1.9mm Wire Core Diameter: 1.02mm,withstand current 7.5A
20AWG: Outside Diameter: 1.7mm Wire Core Diameter: 0.8mm,withstand current 5A
22AWG: Outside Diameter: 1.6mm Wire Core Diameter: 0.65mm,withstand current 3.2A
24AWG：Outside Diameter: 1.46mm Wire Core Diameter:0.5mm,withstand current 2A
26AWG: Outside Diameter: 1.25mm Wire Core Diameter: 0.46mm,withstand current 1.5A
28AWG: Outside Diameter: 1.1mm Wire Core Diameter: 0.32mm,withstand current 0.8A
30AWG：Outside Diameter: 0.6mm Wire Core Diameter: 0.25mm,withstand current 0.55A
Tinned Copper Core
Strictly choosing top-grade tinned copper wiring, it is so easy to solder and will not rust/tarnish even it sits in on your bench for years. The Solid wire life is well enhanced. The copper wire with uniform thickness will not be hit or miss and has better safety performance .
Made of Solid Tinned Copper - The benefits of having tinned copper wire include protection against corrosion, ease of soldering, and providing the same conductivity as bare copper
Uniformly Coated with PVC
Uniformly Coated with PVC(Polyvinylchloride) - The uniform insulation makes the wire easy to strip and cut; The PVC insulation provides high flexibility, resistance to acids, oils, alkalies, moisture, and offers good abrasion resistance
Temperature Rating: -40 degrees C to 80 degrees C.
Rated Voltage: 300V
FLAME TEST: VW-1

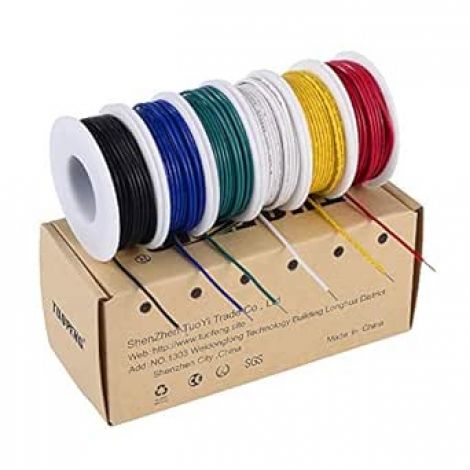

Convenient Dispensing Box
other everyday projects;The wires are in a durable color-coded dispensing box that keeps the spools organized, easily dispensed, and tangle-free
Easy to Store & Easy to Use
In order to make it more convenient for customers, we have created a effective spool kit box that the wire can be stored and distributed. The wire can pass through the small hole of the box directly when using, cut length as much as you need, it will not be messy, and save more time. When you don't use the electronic wire, you can put the wire in the tool box, saving more space.
6 x hook-up wire rolls (black, white, red, blue, green, yellow)
6 Different Colored 13.2ft / 4m Each（16awg）
6 Different Colored 20ft / 6m Each（18awg）
6 Different Colored 26.3 ft / 8m Each（20awg)
6 Different Colored 30ft / 9m Each（22awg)
6 Different Colored 30ft / 9m Each（24awg)
6 Different Colored 33ft / 10m Each（26awg)
6 Different Colored 50ft / 15m Each（28awg)
6 Different Colored 100ft / 30m Each（30awg)
|
|
|
|
|
| |
|---|---|---|---|---|---|---|
| 16 awg Solid Wire Kit | 18 awg Solid Wire Kit | 20 awg Solid Wire Kit | 22 awg Solid Wire Kit | 24 awg Solid Wire Kit | 26 awg Solid Wire Kit | |
| Customer Reviews | 1,352 | 4,097 | 1,589 | 4,043 | 1,352 | 1,352 |
| Price | $19.99$19.99 | $17.69$17.69 | $16.29$16.29 | $15.19$15.19 | $14.99$14.99 | $15.29$15.29 |
| Max Current Capacity | 15A | 7.5A | 5A | 3.2A | 2.0A | 1.5A |
| OD | 2.3mm | 1.9mm | 1.7mm | 1.6mm | 1.46mm | 1.3mm |
| Wire Length | 13.2 Feet / 4 m | 20 Feet / 6.1 m | 26.3 Feet / 8 m | 30 Feet / 9 m | 30 Feet / 9 m | 33 Feet / 10 m |
|
|
|
|
|
|
| |
|---|---|---|---|---|---|---|
| 28 awg Wire Solid Kit | 30 awg Wire Solid Kit | 18AWG Silicone Wire kit | 20awg Silicone Wire kit | 22awg Silicone Wire kit | 12 AWG Silicone Wire 30 feet | |
| Customer Reviews | 1,352 | 1,352 | 4,097 | 1,589 | 4,043 | 1,564 |
| Price | $15.29$15.29 | $15.29$15.29 | $15.59$15.59 | $15.99$15.99 | $15.19$15.19 | — |
| OD | 1.2 mm | 0.8 mm | 2.3 mm | 1.75 mm | 1.65 mm | 4.5mm |
| Bear Current | 0.8A | 0.5A | 7.5A | 5A | 3.0A | 30A |
| Wire Length | 50 Feet/ 15m | 100 Feet/ 30m | 13.2 Feet/ 4m | 23 Feet/ 7m | 26.3 Feet/ 8m | 15 Feet/ 4.6m |
TUOFENG Technology Hook Up Solid Electrical Wire Kit
TUOFENG is a professional manufacturer of electrical wires & founded in 2014. We've been devoted to creating the better security products for consumers and business owners. Because the truly trust of customers, we have always maintained a high level of requirements for our own wires. Until now, TUOFENG has helped thousands of people from all around the world.
Our Solid wires have been widely used in various electronics projects in life or work, including building drones, RC planes, video transmitters, flight controllers, LED lighting, Solid Core Hook-up Wires are perfect for wiring circuits on a breadboard or protoboard, where movement is minimal. Solid core wires are easier to push into a breadboard and plated through holes of a printed circuit board.
