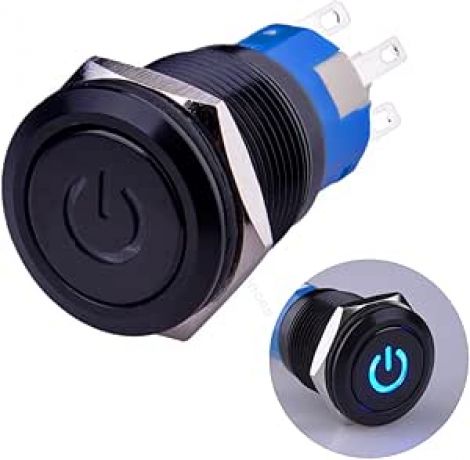

      Latching Pushbutton Switch U19C1 1NO1NC SPDT ON/Off Black Metal Shell with Blue LED Suitable for 19mm 3/4" Mounting Hole (Blue)

      Special Price： $ 0.78

      Qty:
      1
      Add To Cart Favorite Goods
      Service Info： Brand Protection Support 7 Days Return More
      ： 东莞市易淘电子商务有限公司

      This item has been successfully added to the shopping cart.

      Shopping cart has 0 item

      Go To Cart Continue Shopping

      Goods Info

      Goods Detail

      About this item

      • Latching switch: Push it, ON; Push it again, OFF

      • Metal shell,100% brand new and high quality,mechanical life for 500,000 cycles

      • The switch and LED are separated, LED can be on all the time or only on when switch is on,depending on how you wire it

      • Can be use as a switch for various additional electric equipment, inside & outside the car.(Such as critical lights, chassis lamp, fog lamps, dome light)

      • There is a wiring instruction in the packaging. You can get the wiring diagram in it, that can help you to install

      What's the Pushbutton Switch:
      This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount latching switch with an illuminated blue LED. It is a SPDT with 19mm threading and 1mm pitch. This button is perfect for basic On/Off functions. These latched buttons are rated up to 5A and 250VAC while the LED is rated for 5-12V.

      What's Latching Switch:
      Latching switch, push it down, it stays down and latched in the closed position, press the button again and it releases and unlatches

      What's Latching Switch Used for:
      Most often latching switches are used for various additional electric equipment, inside & outside the car(Such as critical lights, chassis lamp, fog lamps, dome light)

      What's Note:
      -These switches come with a rubber O-ring which makes them splash resistant but they can NOT be submerged underwater
      -The project you are going to be used for, don't let current go above 5 amps. Or the switch will get warm and to be burned out

      Wide Compatibility

      The U19C1 can be used for powering just about anything in an automotive or marine application. Even high current drawing components can be controlled when used with the proper relay's and wiring.

      For use in a variety of applications including cars, boats, motorcycles, electronics modifications and so on.

      The More Wiring Ways

      The switch and LED are separated, LED can be on all the time or only on when switch is on.

      1NO1NC switch, you can wire it as a 1NO switch or a 1 NC switch.

      You can use two U19C1 switches to control a common device.

      Specifications:

      Thread depth: 5/8" (16mm)
      Head diameter: 7/8" (22mm)
      Mounting hole size: 3/4" (19mm)
      Depth inc contacts: 1.5" (38mm)
      Switch combination: 1NO1NC
      Operation types: Latching
      Switch rating: 5A/250VAC, 5A/30VDC
      LED rating: 15mA, AC/DC 12V
      LED color: Blue
      Head shape: Flat
      Enclosure material: Aluminium alloy
      Protection level: IP67, IK10




      		U16F5 Latching SwitchU16F5S Latching SwitchU19C1 Latching SwitchU19C1S Latching SwitchU22A4 Latching Switch

      Customer Reviews
      4.3 out of 5 stars
      469
      4.3 out of 5 stars
      469
      4.5 out of 5 stars
      1,112
      4.5 out of 5 stars
      1,112
      4.3 out of 5 stars
      162
      Price $8.98$8.98    $8.98$8.98    $8.95$8.95    $8.98$8.98    $10.65$10.65
      Mounting Hole Size 5/8" ( 16mm )   5/8" ( 16mm )   3/4" (19mm) 3/4" (19mm) 7/8" ( 22mm )
      Switch Combination 1NO1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC
      Operation Types Latching Latching Latching Latching Latching
      Switch Rating 5A/250VAC, 5A/30VDC 5A/250VAC, 5A/30VDC 5A/250VAC, 5A/30VDC 5A/250VAC, 5A/30VDC 5A/250VAC, 5A/30VDC
      LED Rating 15mA, AC/DC 12V 15mA, AC/DC 12V 15mA, AC/DC 12V 15mA, AC/DC 12V 15mA, AC/DC 12V
      LED Color Select Blue/Green/Red Blue/Green/Red Blue/Green/Red Blue/Green/Red Blue/Green/Red
      LED Shape Power Symbol Power Symbol Power Symbol Power Symbol Power Symbol
      Button type Flush-button Flush-button Flush-button Flush-button Flush-button
      Teminal Type 5 Pins 5 Pins 5 Pins 5 Pins 6 Pins
      Shell Material Aluminium alloy Stainless steel Aluminium alloy Stainless steel Aluminium alloy
