      Automatic Vacuum Switch Allow Power Tool/Table Saw to Turn Vac Cleaner/Accessory On and Off Automatically, Load Sensing, On Delay Prevent Circuit Overload, Shop Dust Collector Off Delay

      Special Price： $ 1.97

      Qty:
      1
      Add To Cart Favorite Goods
      Service Info： Brand Protection Support 7 Days Return More
      ： 东莞市易淘电子商务有限公司

      This item has been successfully added to the shopping cart.

      Shopping cart has 0 item

      Go To Cart Continue Shopping

      Goods Info

      Goods Detail

      About this item

      • NEW GENERATION: Add a manual switch to support three vacuum run modes: Auto, Off and On. You can not only turn the vacuum on/off automatically with the power tools, but also manually turn the vacuum on/off all time according to your actual condition.

      • HIGH-QUALITY MATERIALS: Adopt 19.7 inch UL-certified US standard 14AWG power cord which allow passage with a large current more than 30A. Durable PC+ABS V0 grade flame retardant material case, reduce heat during use and extend service life.

      • TURN ON DELAY. Load Sensing Technology. If the load connected to the 'TOOL' port exceeds 30W, the vacuum connected to the 'VAC' port will automatically delay 1s to start, which helps prevent circuit overloaded by large current if tool and vacuum power-on at the same time.

      • SHUT OFF DELAY: Automatically delay vacuum turn-off by 7s to continue clearing the remaining airborne debris after the load connected to the 'TOOL' port has stopped. Saving time and electricity, reducing airborne toxin and work area noise that can lead many health problems.

      • COMPATIBILITY: Support a wide range of cutting tools from handheld devices to large shop saws such as table saw, miter saw, track saw, chop saw, sander, router table, planers, shopvac, remote control outlet, automated vacuum switch, dust collection systems for woodworking and etc. Power rating should not exceed 120 VAC, 15 Amp, 60 Hz, 1875w.

      • WHAT YOU GET: Senctrl automatic vacuum switch (AVS2000), welcome guide, our worry-free 12-month warranty, and friendly customer service.

      › See more product details
      AVS2000
      AVS2000

      General Description

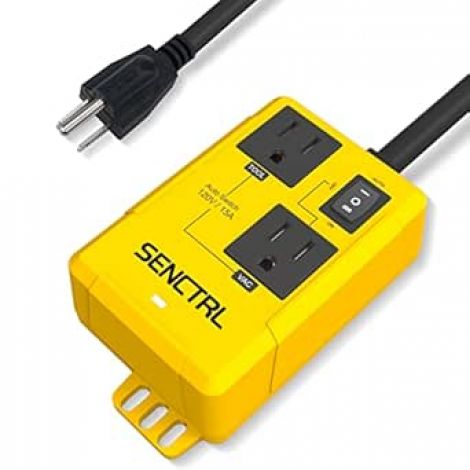

      The AVS2000 Switch Box is intended to be used in conjunction with a power tool, such as a table saw, router or sander and an associated vacuum or dust collection system rated at 15 Amps or less.

      The unit has the following Inputs, Outputs and Controls.

      Two AC receptacles: Tool Power and Vacuum Power.

      A user control: a Mode Switch.

      The Tool Power receptacle is used to provide power to the power tool being used. The Vacuum Power receptacle is used to provide power to the vacuum system.

      The Mode Switch is used to determine the mode of operation of the vacuum system.

      Max motor rating should not exceed 120V/15A 50/60Hz,1875W. Vacuum motor HP should not exceed 1875W.

      SPECIFICATIONS

      • Durable PC+ABS V0 grade flame retardant material case.

      • American Standard 14AWG power cord.

      • Length of Power Cord: 19 Inch (0.5 meter)

      • Tool Power Rating: 15 Amp, 120 VAC, 60 Hz.

      • Vacuum Power Rating: 15 Amp, 120 VAC, 60 Hz.

      • Actuation Threshold: ~0.25 Amps (about 30W at 125V).

      AVS2000
      AVS2000

      Operation:

      Step 1:


      • Plug the AVS2000 into any standard 15A/120V outlet. Set the Mode Switch to the AUTO position.

      Step 2:


      • Plug vacuum into the VAC OUTLET.

      • Switch ON Vacuum.

      Step 3:


      • Plug tool into TOOL OUTLET.

      • USE your power tool as normal.


      1. Power the tool ON, and the vacuum will automatically delay 1 seconds to start.

      2. Power the tool OFF, and the vacuum will continue running for an additional 7 seconds to clear out the hose.

      WARNING:


      • Max motor rating should not exceed 120V/15A 50/60Hz,1875W! Vacuum motor HP should not exceed 1875W!

      • Please read the operating instructions before use.

      • The AVS2000 Switch Box unit is intended for indoor use, in dry locations only.

      • This unit may use more than one live circuit.

      • Do not connect hazardous devices to the ‘VAC’ receptacle.

      • Do not connect to mains circuits that have a capacity of greater than 15 Amps.

      AVS2000
