GFFG 550Pcs Solder Seal Wire Connectors Kit, Heat Shrink Butt Connectors, Waterproof and Insulated Electrical Wire Terminals, Butt Splice for Automotive Marine Boat Aircraft Truck
Special Price：
$ 5.23
： This item has been successfully added to the shopping cart.
Shopping cart has 0 item
Go To Cart Continue Shopping
Goods Info
Goods Detail
Terminals
Different wiring terminals
Practical tool
Waterproof wiring terminal
Our wire connectors are upgraded to use exclusive material in the butt connectors to avoid shrink tubing melting before solder ring. The success rate of connecting wire has been greatly improved.

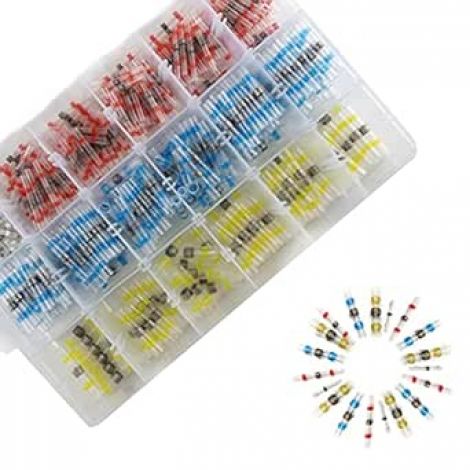

Package Included:
100x Butt Connectors White: Diameter 1.7 mm, able cross-section 0.25-0.34 mm² (A.W.G.: 26-24)
200 x Butt Connectors Red: Diameter 2.7 mm, Cable cross-section 0.5-1.0 mm² (A.W.G.: 22-18)
200 x Butt Connectors Blue: Diameter 4.5 mm, Cable cross-section 1.5-2.5 mm²(A.W.G.: 16-14)
50x Butt Connectors Yellow: Diameter 6.0 mm, Cable cross-section 4.0-6.0 mm²(A.W.G.: 12-10).
Instructions for use:
1.Insert the wires into the solder sleeve.
2.Apply heat to the soldering while swinging the hot air gun mildly.
3.Heat close at the highest setting (used a 1500w heat gun)until you see the solder shine then until it melts.
Note:
It means the temperature of surface of the connector, rather than the temperature that the hot air gun should set.
Shrinkage ratio is 3:1
Temperature that starts to shrink: 130℃
Temperature that solder ring start to melt: 125˚C
Temperature that solder ring melt completely：150˚C
Solder seal wire connectors come with IP67 water-resistant rating. After being heated, they shrink and water will not be able to go inside, preventing any short circuit issues. Widely used on marine projects.
Polyolefin Tubing Outside and Hot melt Adhesive Inside make connection strong and waterproof.
The wire connectors ideal used for vehicle, motorcycle, boat, DIY electrical wirings and other outdoor applications,Sopoby Solder Connector Kit.
