About this item

• ✦ 【Specification】Voltage: 12VDC; Resistance: 14Ω; Capacity: 10.2W; Contacts: Normally Open (NO) with 2 Copper Point ; Bracket:Straight;Spst, One circuit: Off - On, Bracket mounting:Holes 5/16 x 19/32 2-13/64 on center

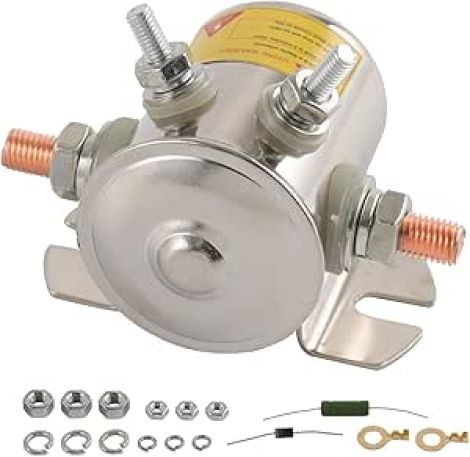

• ✦ 【Replaces Parts Number】70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547. ✦【Package includes】: 1 PC of 12V 4 Terminal battery isolation solenoid W/ Resistor &diode.

• ✦ 【Materials】4 Terminal Max 300A 12 Volt With 2 Copper Point Continuous Duty Solenoid Relay ,The The electromagnetic relay adopts high-quality components, Coil Roll is using 180℃ copper wire, Cover is Nickel-Plating, Meet Environmental Plating Requirment. The Nickel-Plating outer layer and the inside of the canned coil, suitable for use in any environment

• ✦ 【Function 】 4-pole battery isolation solenoid valve: Maximum transient flash current: 300Amp; but Continuous Working Current recommend under 150 Amp, Note: Normally Make 80A as Working Current, Need Break 5 sec on, 50 min off -/ If u need a long working one, pls check another style.

• ✦ 【Widely Application】Widely used in ships, winches, military vehicles, hydraulic control units, golf carts, factory machines

About Us

Professional Auto Parts Manufacturer have been committed to producing high-quality auto and motorcycle accessories for many years.

Previous page

1.


2.




• LDMINDA produces high quality products with cost-effective offers and long service life and excellent performance.

• Specializing in the production of various auto accessories such as  Water Pump, Fuel Pump,Fuel Filter,Power Steering Pump,Solenoid, Relay,Air Intake Pipe,Proportioning Valve,Tonneau Covers etc

3.
4.







   hot-selling
5.







   hot-selling
6.







   hot-selling

7. How do we ensure after-sales service?

   All LDMINDA  product offer a one-year free replacement service. From the day of purchase, if you encounter any quality issues, feel free to reach out to us. Our professional team is dedicated to providing premium service.

   Why do we love our do?

   Every time we assist a customer in problem-solving, we derive immense fulfillment. Behind each order lies a vibrant partner, we greatly value the opportunity to connect with our clientele online. Our dedication revolves around delivering value to our customers.

Next page

Dimensions

12V 4 Terminal Max 300A Solenoid W/ Resistor&diode

Replaces Parts Number:

• 70-111224

• 3635820

• 1114208

• 1114218

• 1114223

• 1114534

• 1114547

12VDC Max 300A 4 Terminal Continuous Duty Solenoid Relay

4-pole battery isolation solenoid valve

PACKAGE CONTAINS

• Resistor

• diode

• 12V Solenoid

• Voltage 12VDC

• Resistance 14Ω

• Capacity 10.2W

• Max Transient Flash Current 300Amp

• Max Transient Current can reach 300Amp

• Continuous Working Current Under 150Amp

• Contact Studs : 5/16 -24 Studs Standard & Long

• Bracket mounting : Holes 5/16 x 19/32 2-13/64 on Center

	12V 4 Terminal Max 300A Solenoid	12V 3 Terminal Max 200A Solenoid	24V 4 Terminal Max 200A Solenoid	36 V 4 Terminal Max 200A Solenoid	12V 4 Terminal Max 300A Solenoid W/ Resistor&diode	12V 6 Terminal MAX 100A Solenoid
Customer Reviews	4.1 out of 5 stars  442	4.1 out of 5 stars  442	4.1 out of 5 stars  442	4.1 out of 5 stars  442	4.1 out of 5 stars  442	4.1 out of 5 stars  442
Price	HKD 124.38HKD124.38	HKD 123.53HKD123.53	HKD 123.53HKD123.53	HKD 139.94HKD139.94	HKD 132.16HKD132.16	HKD 146.87HKD146.87
voltage	12 Volt	12 Volt	24 Volt	36 Volt	12 Volt	12 Volt
Number of Terminal	4 Terminal	3 Terminal	4 Terminal	4 Terminal	4 Terminal	6 Terminal
Max Intermittent Current	300 Amp	200 Amp	200 Amp	200 Amp	300 Amp	100 Amp
Material	Nickel Plating	Zinc Plating	Nickel Plating	Zinc Plating	Nickel Plating	Nickel Plating
